An orribol copi of FlipperZero, uit worst inglish
A Flipper Zero clone, but cheapest, DIY and simply Open Source, made with Arduino IDE

⚠️ Important Notice: This is just a fun project, it was started to pass the time, it is not at all professional and is not intended to be. Is not an alternative for professional device.

side pic

Star History Chart

  • STM32-L432KC (Microcontroller)
  • FS1000a (Radio freq Transmitter)
  • RXB12 (Radio freq Receiver)
  • PN532 (RFID/NFC)
  • IR LED & Reciver
  • 2N222A PBFREE
  • SSD1306(Display 128×64 OLED)
  • TF CardMemory Shield
  • TP4056 (Battery charger)
  • DC-DC 5V BOOST (voltage booster)
  • 6x 6x6x8mm push button
  • Micro usb smd
  • Battery 3.7 lipo

  • RubberDucky

  • RFID/NFC (Work in progress)

  • IR

    • Read ir signal and emulate it or save it

  • RF

    • Read rf signal and emulate it or save it

  • Save/Load from SD

  • Battery percentage

  • Sd memory left percentage

  • All programmable via Arduino Ide

  • Add 3d printed shell (https://www.printables.com/model/1142768-flopper-ziro-shell), not finished yet

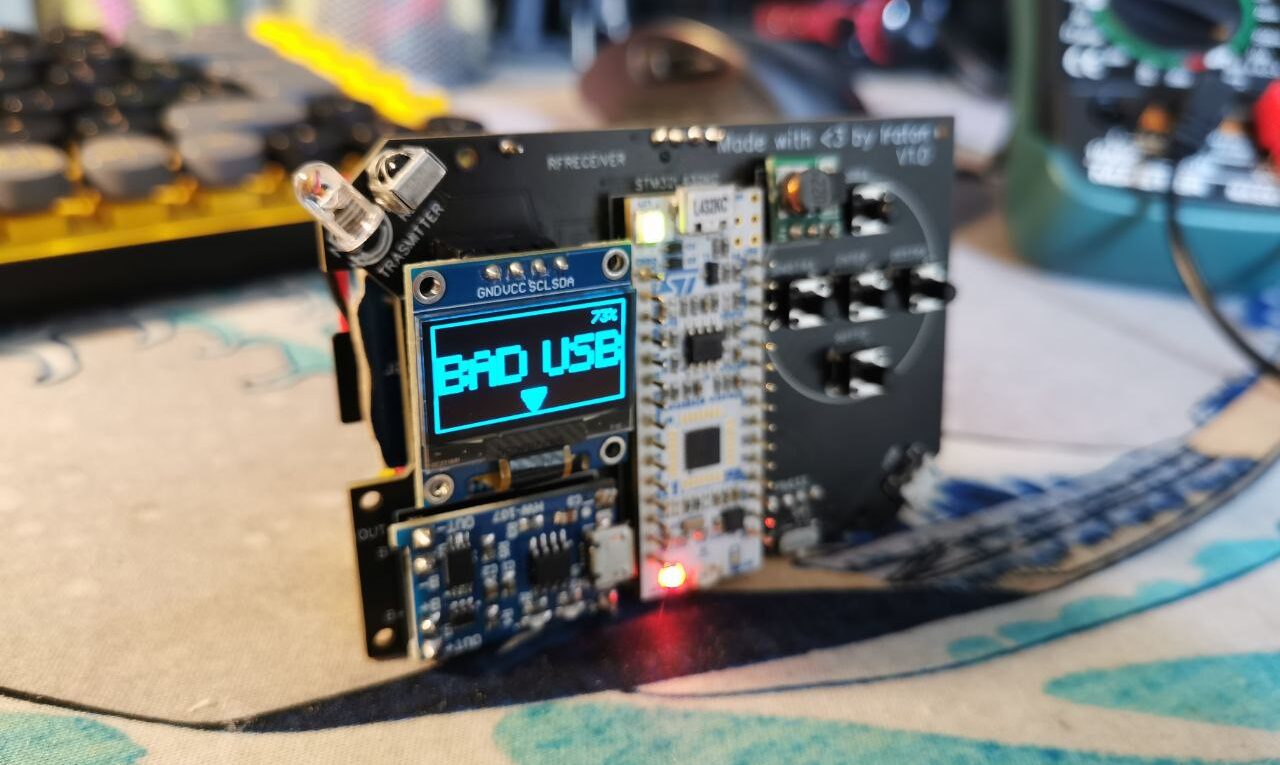

front pic
back pic
